RM-P3E In-Situ Raman Pressure Battery Test Cell

A sealed three-electrode cell for in-situ Raman monitoring during battery cycling under pressurized or vacuum conditions.

Product Overview

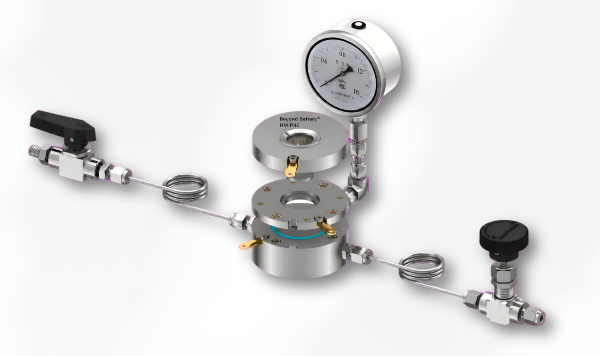

The RM-P3E is a sealed three-electrode battery test cell integrating in-situ Raman measurement with electrochemical cycling under controlled pressure or vacuum conditions. Its sapphire optical window and short sample-to-window distance facilitate Raman signal collection, while the three-electrode configuration enables working-electrode potential monitoring against a reference electrode. A high-purity titanium body, PEEK insulation, adjustable spring loading, O-ring sealing, and an integrated pressure gauge support reliable, glovebox-compatible testing under pressurized conditions. Vacuum operation is supported by replacing the pressure gauge with a compatible vacuum gauge.

Key Features

• In-situ Raman Monitoring
Enables real-time Raman characterization of electrode materials during battery charge/discharge operation

• Three-Electrode Configuration
Supports monitoring of the working-electrode potential against an independently connected reference electrode

• Pressure/Vacuum, Glovebox-Compatible Design
Combines interchangeable pressure or vacuum monitoring, adjustable spring loading, and airtight O-ring sealing for sealed battery testing

Technical Specifications

Electrode configuration Three-electrode system
Sample-to-window distance < 2 mm
Optical window diameter Ø20 mm
Effective optical window diameter Ø12 mm
Maximum pressure 1 MPa
Optical window material Sapphire
Cell body material Ti
Insulation material PEEK
Current collector tab Gold-plated copper

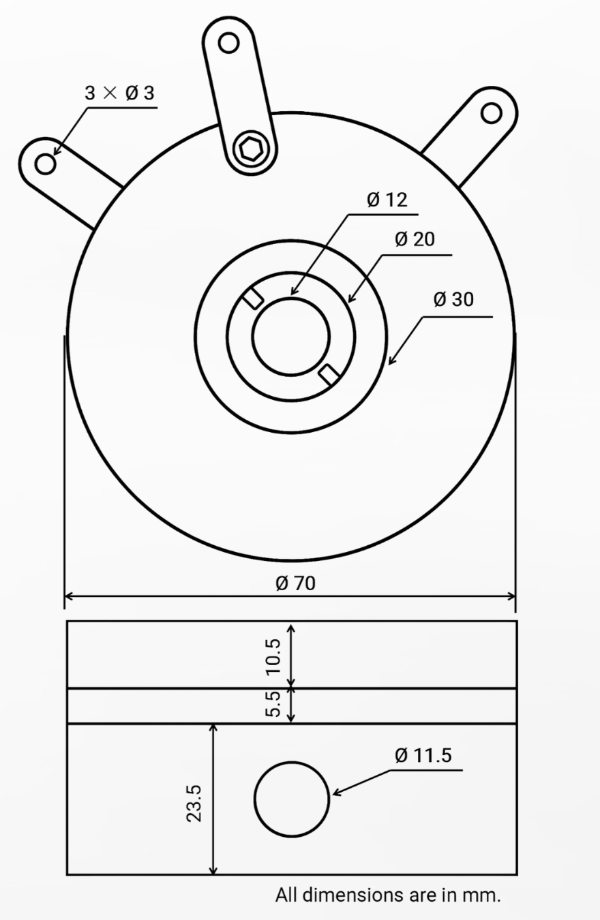

Cell body dimensions Ø70 mm × H40 mm



Instrument Compatibility

• Raman System Compatibility
Compatible with commercial Raman microscope systems, including Renishaw (inVia) and HORIBA (LabRAM Soleil Nano)

• Electrochemical Testing Compatibility
Compatible with commercial electrochemical workstations, including Bio-Logic (VSP-3E), and battery testing systems, including LAND (CT3004A)

Related Published Application

In-situ Raman Tracking of Sodium Storage in Hard Carbon

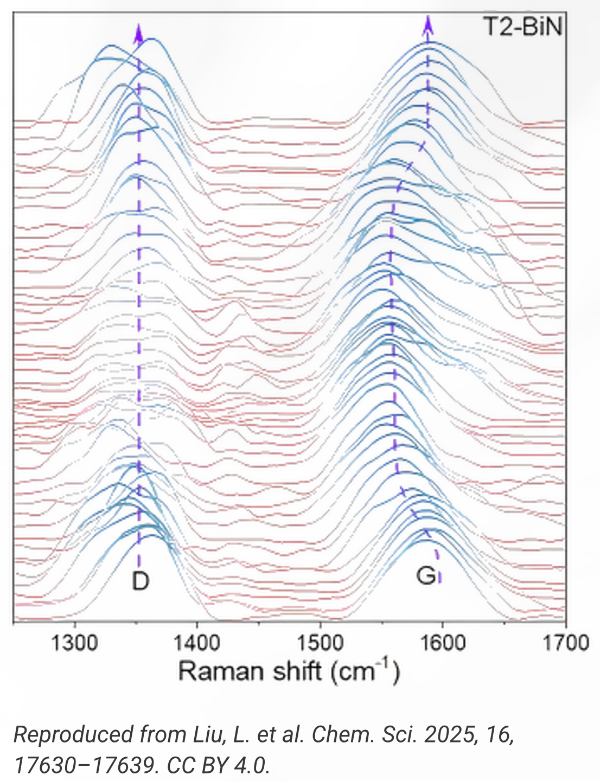

The cell used in this study, supplied by Beyond Battery under product code RM-3E, was coupled with a HORIBA LabRAM Soleil Nano confocal Raman spectrometer to compare pristine T2 and Bi/N-modified T2-BiN hard-carbon anodes during sodium-ion battery cycling. In-situ spectra revealed a pronounced G-band redshift and reduced D-band intensity for T2-BiN, indicating enhanced Na⁺ intercalation-induced C–C bond strain and increased Na⁺ adsorption at defect sites.

Demonstrated Capabilities of the Base RM-3E Configuration

  • In-situ Raman monitoring during battery charge/discharge cycling
  • Comparative tracking of D- and G-band evolution
  • Identification of Na⁺ intercalation and defect-site adsorption

Application Studies

Application studies using this model are currently underway.
