CP Series Gas Diffusion Flow-Cell Model: CP10

Applications:
This cell is suitable for gas diffusion electrode research, CO₂ reduction reactions (CO₂RR), hydrogen and oxygen evolution reactions (HER/OER), membrane-separated electrolysis experiments, and laboratory-scale electrocatalysis and electrochemical studies. It supports customizable setups for specific experimental needs.

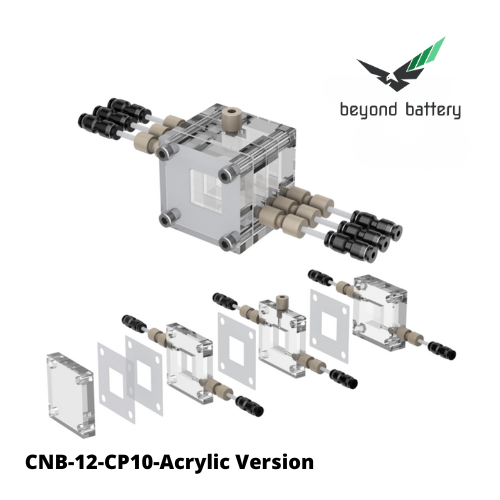

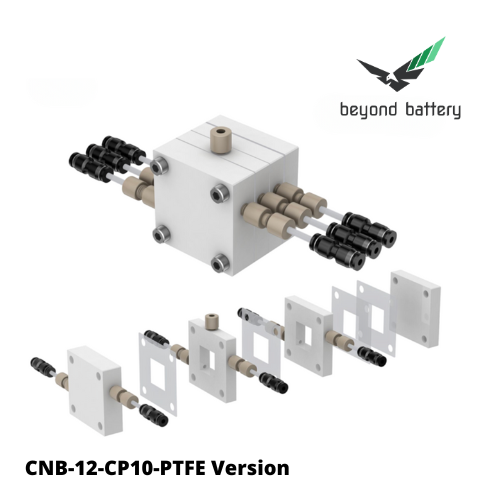

Cell Structure:
The cell consists of three chambers—a gas chamber, a cathode chamber, and an anode chamber. The gas and cathode chambers are separated by a gas diffusion electrode (self-provided), while the cathode and anode chambers are separated by a membrane, supporting customizable configurations.

• Cell Body Material: Acrylic, PTFE
• Chamber size: 10 × 10 × 10 mm
• Reference Electrode Port: 4 mm
• Tubing Port Size: 3 mm
