CNB-12-EC-MOD
Modular In-situ Electrochemical Cell Model: EC-MOD
EC-MOD Modular In-situ Electrochemical Cell
A modular, multifunctional flow cell for in-situ UV, Raman, IR, XAFS, and XRD studies under controlled electrochemical conditions.
Product Overview
The EC-MOD is a modular flow-through electrochemical cell designed to couple three-electrode control with in-situ spectroscopy and diffraction. Interchangeable optical and X-ray window assemblies configure the same base cell for Raman, UV, IR, XAFS, or XRD measurements. Standard plate-electrode, and gas-diffusion configurations support liquid-phase interfacial studies, spectroelectrochemical analysis, and gas-fed electrocatalytic reactions.
Key Features
• Multi-technique Window Platform
Interchangeable quartz, sapphire, CaF₂, Kapton-film and beryllium windows configure the cell for different in-situ analytical methods.
• Dual Working Electrode Configurations
Standard plate-electrode and gas-diffusion assemblies support conventional liquid-phase studies and gas-fed electrocatalysis.
• Flow-Through Electrolyte Circulation
Dedicated inlet and outlet ports support external electrolyte circulation and controlled flow during electrochemical measurements.
Technical Specifications
| WE-optical window distance | < 1.5 mm |
| Optical window size | 15 × 15 mm |
| Chamber structure | Single-chamber (standard configuration); Two-chamber (gas-diffusion configuration) |
| Working electrode | Sheet-type electrode |
| Reference electrode | Ag/AgCl electrode (standard) |
| Counter electrode | Platinum wire electrode |
| Cell body material | PEEK + Ti |
| Raman/UV windows | Sapphire (standard) or quartz (optional) |
| XAFS window | Kapton film (optional) |
| XRD window | Beryllium (optional) |
| IR window | CaF₂ (ZnSe optional) |
• In-situ Raman/UV Measurements
Monitoring interfacial species and reaction intermediates

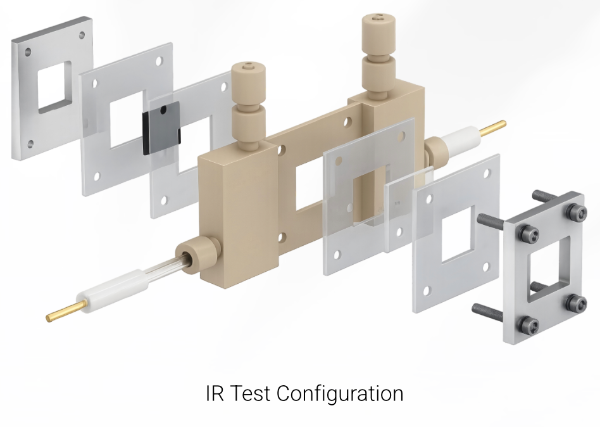

• In-situ IR Measurements
Monitoring adsorbed species and reaction pathways
• In-situ XAFS Measurements
Probing oxidation states and coordination structures
• In-situ XRD Measurements
Tracking phase and structural evolution
• Gas-Diffusion Electrode Studies
Suitable for CO₂RR, ORR, and NRR
Instrument Compatibility
• Spectroscopy and X-ray Compatibility
Configurable for Raman, UV, and IR optical systems, synchrotron XAFS beamlines, and laboratory or synchrotron XRD instruments, subject to instrument geometry, beam size, incidence angle, optical access, and working-distance requirements.
• Electrochemical and Flow System Compatibility
Compatible with standard three-electrode potentiostats, external electrolyte pumps, PTFE tubing, gas-supply systems and downstream product-collection equipment
Standard and Gas-Diffusion Configurations

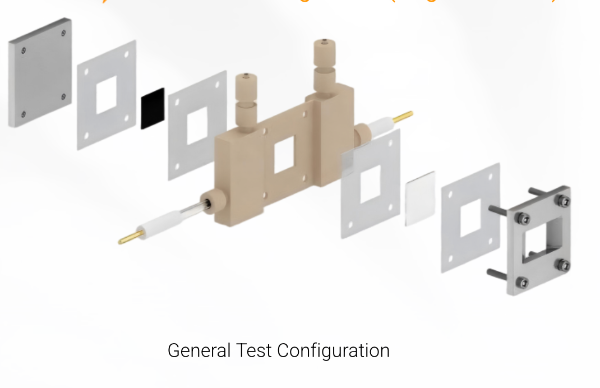

• Standard Configuration (single-chamber)

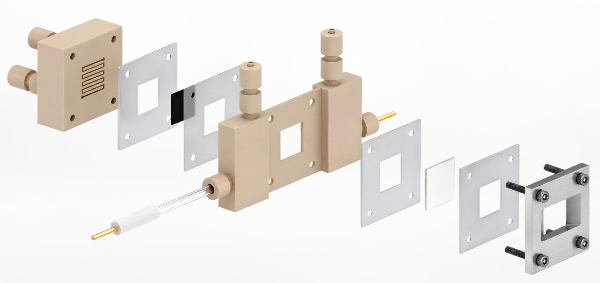

• Gas-diffusion Configuration (two-chamber)
Application Studies
Application studies using this model are currently underway.
