CNB-12-XRD-2E
In-Situ XRD Battery Test Cell (Two-Electrode System) Model: XRD-2E

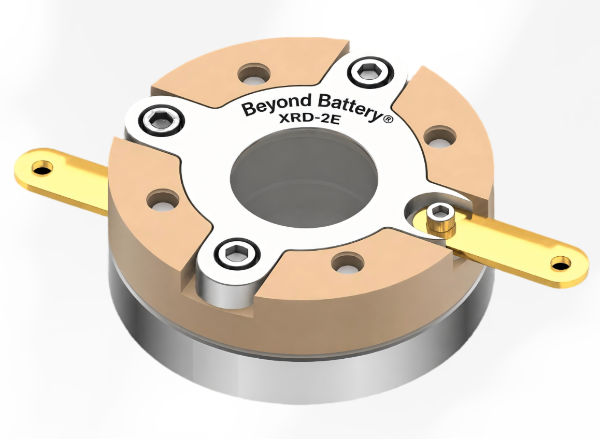

XRD-2E In-Situ XRD Battery Test Cell
A sealed two-electrode battery test cell for operando XRD monitoring during electrochemical cycling.
Product Overview
The XRD-2E is a sealed two-electrode battery test cell designed for in-situ X-ray diffraction measurements during charge/discharge cycling. A low-background beryllium window provides direct X-ray access to the cell-stack, while the spring-loaded structure maintains stable interfacial contact. The high-purity titanium body, PEEK insulation, and chemically resistant O-ring sealing support repeatable assembly, glovebox preparation, and post-test sample recovery for rechargeable battery studies.
Key Features
• Bruker D8-Compatible XRD Measurement
Compatible with Bruker D8 X-ray diffractometer systems for operando XRD monitoring during battery cycling
• Low-Angle XRD Accessibility
Supports XRD measurements from a minimum operating angle of 3°, enabling broader low-angle access for operando configurations
• Spring-Loaded, Glovebox-Compatible Design
Maintains stable cell-stack compression and enables glovebox assembly with reliable O-ring sealing for subsequent operation under ambient conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Minimum operating angle | 3° |
| Effective optical window diameter | Ø20 mm |
| Applicable sample diameter | Ø20 mm |
| Optical window material | Beryllium (Be) |
| Electrode system | Two-electroder |
| Cell body material | Ti |
| Insulation material | PEEK |
| Current collector tab | Gold-plated copper |
| Sealing method | Chemically resistant O-rings |

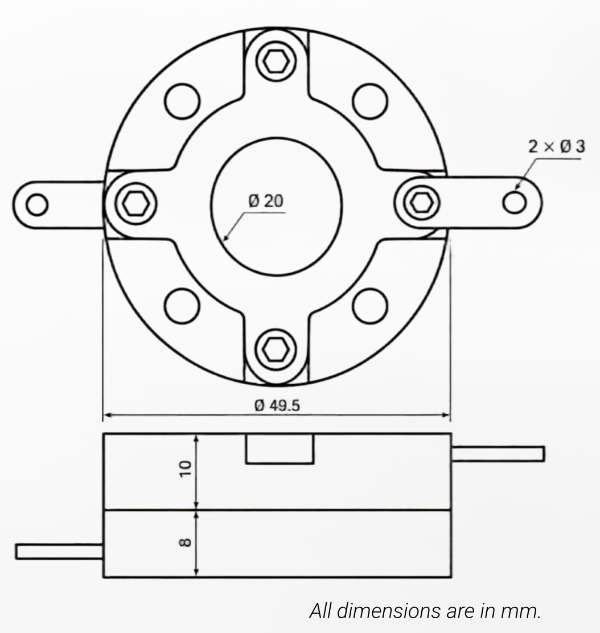

| Cell body dimensions | Ø49.5 mm × H18 mm |
Note: Solid beryllium is relatively stable and poses low skin-contact risk; avoid inhaling dust or aerosols and wash hands after handling.
.
Instrument Compatibility
• XRD System Compatibility
Compatible with Bruker D8 systems and other X-ray diffractometers with suitable mounting and scan geometries. The sample holder, incident-angle range, beam path, and instrument clearance should be verified before testing
• Electrochemical Testing Compatibility
Compatible with commercial electrochemical workstations and battery testing systems that support two-electrode charge/discharge testing
Operando XRD Literature Example

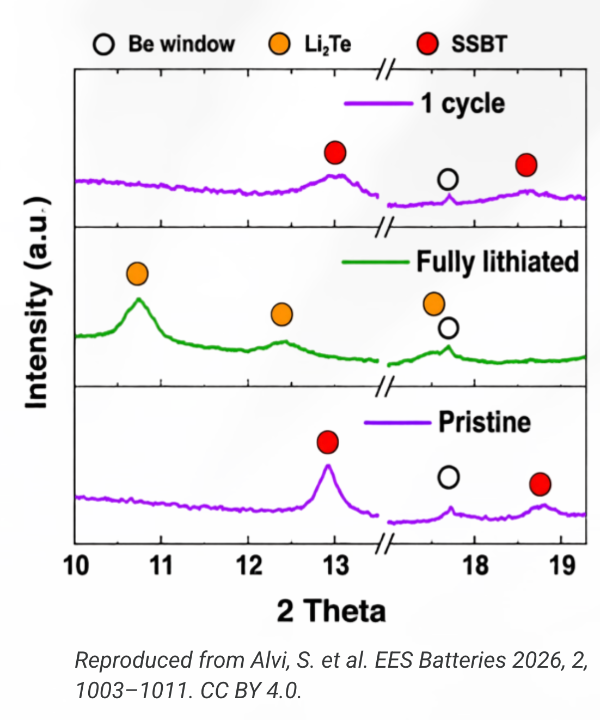

Operando XRD Tracking of Conversion–Alloying Reactions
Alvi et al. used a Bruker D8 DISCOVER diffractometer with a Be-window operando cell to study SSBT-based anodes in lithium half-cells at C/5. Potential-dependent XRD patterns revealed lattice expansion, transient Li₂Te formation, and reversible structural evolution during cycling.
Demonstrated Operando XRD Capabilities
- Real-time tracking of phase evolution during battery cycling
- Detection of transient crystalline reaction products
- Correlation of structural changes with cell potential
Reproduced from Alvi, S. et al. EES Batteries 2026, 2, 1003–1011. CC BY 4.0.
Application Studies
Application studies using this model are currently underway.
