In-situ Raman Spectroelectrochemical Cell Model:EC-RM3S
Product Overview

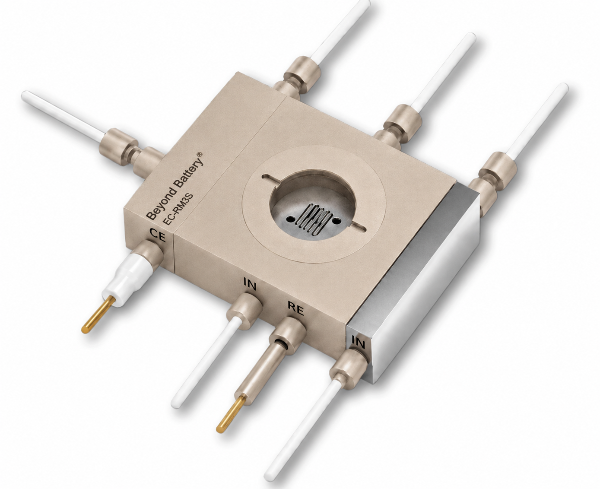

The EC-RM3S is an upgraded version of the EC-RM3 In-situ Raman Spectroelectrochemical Cell. It retains the membrane-separated three-chamber configuration and direct Raman access of the EC-RM3, while incorporating a serpentine flow channel within the gas chamber. The extended gas flow path increases the contact time between the reactant gas and the catalyst layer, allowing the gas to participate more effectively in the electrochemical reaction.
Key Features
Serpentine Gas Flow Channel
Extends the gas flow path across the working electrode, enabling controlled reactant delivery
Extended Gas–Catalyst Contact
Increases gas residence time to enhance interaction between the reactant gas and catalyst layer
Enhanced Gas-Fed Interface Control
Promotes effective gas participation during operando Raman investigation of the electrochemical interface
Technical Specifications
| Working electrode area | 1 cm² (customizable) |
| WE-Optical window distance | < 6 mm |
| Optical window diameter |
Ø37 mm |
| Chamber structure | Three-chamber gas-diffusion configuration with a serpentine flow channel |
| Working electrode | Sheet-type gas-diffusion electrode (e.g., Au, Pt, glassy carbon, ITO, and FTO) |
| Reference electrode | Ag/AgCl or Ag/Ag⁺ electrode |
| Counter electrode | Platinum wire or graphite rod electrode |
| Cell body materials | PEEK + Ti |
| Optical window material | Quartz |

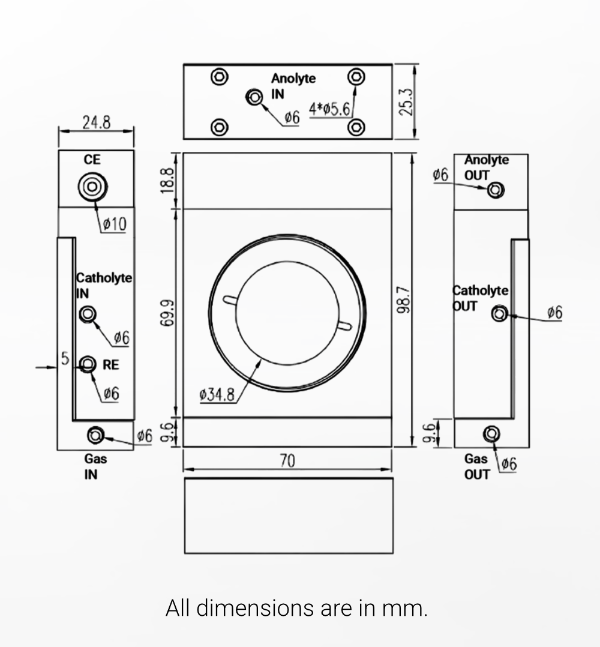

| Cell body dimensions | L99 × W70 × H25 mm |
Instrument Compatibility
Raman System Compatibility
Compatible with commercial Raman microscope systems, including Renishaw (inVia Qontor), HORIBA (LabRAM HR Evolution and iHR550), and Ocean Optical Instruments (HRS-5A).
Potentiostat Compatibility
Compatible with commercial three-electrode electrochemical workstations, including CH Instruments (CHI660E, CHI760E, and CHI1140C), Bio-Logic (VMP3), and Corrtest Instruments (CS350M).
Published Application Example
In Situ SERS Monitoring of CO₂ Electroreduction

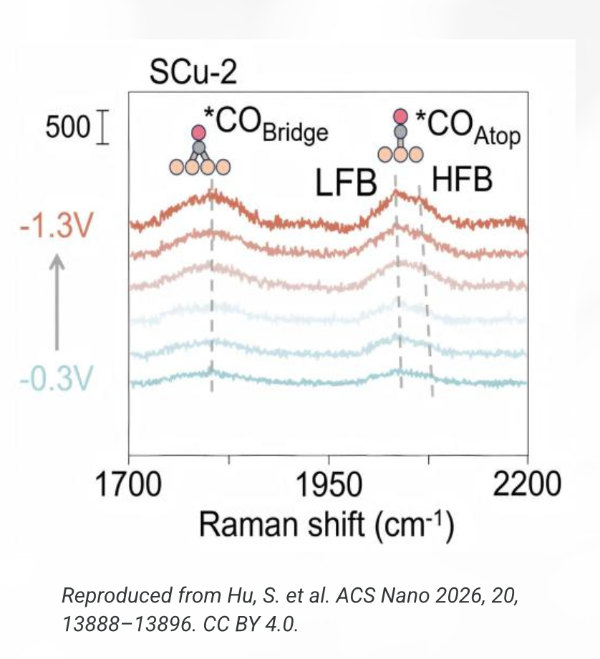

The cell used in this study, supplied by Beyond Battery under product code EC-RM3S, features a gas-fed flow-cell configuration. It was used to investigate copper electrodes with different densities of Cu(100)/(111) grain boundaries during CO₂ electroreduction in a neutral electrolyte.Catalyst-coated gas-diffusion layers served as the working electrodes, while Ag/AgCl and platinum wire were used as the reference and counter electrodes, respectively. In situ SERS monitoring tracked Cu–OH and adsorbed *CO species, linking hydroxyl-rich grain boundaries to enhanced ethylene selectivity.
Demonstrated EC-RM3S Capabilities
- Operando SERS monitoring in a gas-fed flow-cell configuration
- Compatibility with catalyst-coated gas-diffusion electrodes
- Tracking of Cu–OH and adsorbed *CO surface species
Application Studies
Additional application studies are underway.
Product Identification Note: EC-RM3S is the Beyond Battery product code for the same cell reported in the cited publication. The original article uses a different product designation.
