CNB-12-EC-GDE2-1

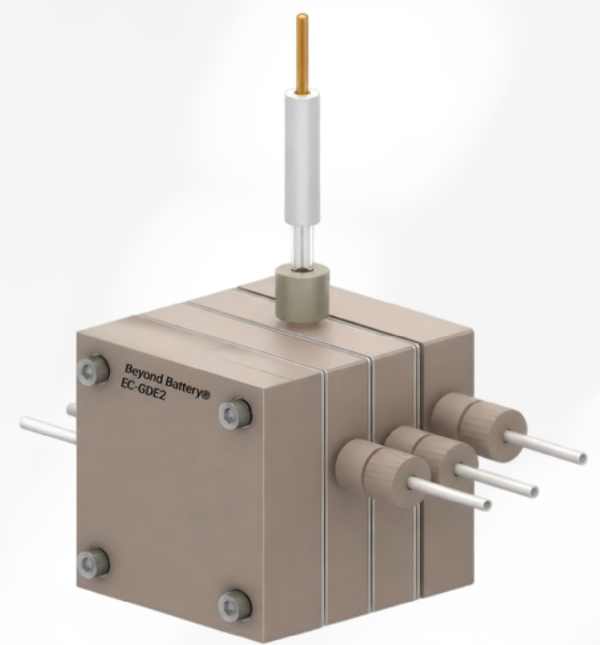

Gas Diffusion Electrochemical Cell (Three-Electrode System), Model: EC-GDE2
EC-GDE2 Gas Diffusion Electrochemical Cell
A cost-effective, three-chamber GDE flow cell for rapid feasibility validation and catalyst screening.
Product Overview
The EC-GDE2 is a cost-effective gas diffusion electrochemical flow cell designed for rapid feasibility validation and electrocatalyst screening. Its three-chamber, three-electrode architecture supports direct reactant-gas delivery to a sheet-type gas diffusion electrode and controlled electrolyte circulation, providing a flexible laboratory platform for gas-fed electrochemical research.
Key Features
Cost-Effective Flow-Cell Platform
Supports rapid feasibility validation and routine gas-diffusion electrode screening.
Controlled Three-Chamber Operation
Separates gas, catholyte, and anolyte pathways for controlled three-electrode testing.
Flexible Cell-Body Options
PMMA, PTFE and PEEK configurations support selection for different experimental requirements.
Typical Applications
Gas-Diffusion Electrode Studies
Evaluating sheet-type GDEs under controlled electrolyte-flow conditions.
CO₂ Electroreduction Research
Investigating catalytic activity and selectivity toward C₁ and C₂+ products.
Electrocatalyst Screening
Comparing catalyst structures, electrochemical activity and current-density response.
Technical Specifications
| Chamber structure | Three-chamber |
| Electrode system | Three-electrode |
| Anode-cathode gap | 20 mm |
| Active area | 1 or 4 cm² (10 x 10 mm or 20 x 20 mm, customizable) |
| Working electrode | Sheet-type gas diffusion electrode |
| Reference electrode | Rod-type electrode |
| Counter electrode | Sheet-type electrode |
| Cell body material | PMMA / PTFE / PEEK |
Instrument Compatibility
Gas and Electrolyte Flow Compatibility
Compatible with regulated laboratory gas supplies and electrolyte-circulation systems equipped with mass flow controllers, gas flow meters and peristaltic pumps.
Potentiostat Compatibility
Compatible with commercial potentiostats supporting three-electrode measurements, including CH Instruments (CHI660E, CHI760E, CHI1140C), Bio-Logic (VMP3), Corrtest Instruments (CS350M), Ivium Technologies (CompactStat.e20250), and Metrohm Autolab (PGSTAT204).
Published Application Example

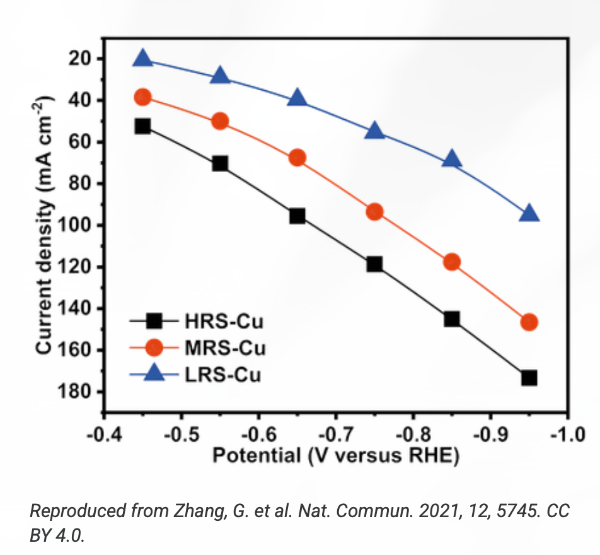

High-Rate CO₂ Electroreduction to Multicarbon Products
A three-chamber flow cell was used to evaluate Cu(100)-rich gas-diffusion electrodes for CO₂ electroreduction to ethylene and C₂+ products. Direct CO₂ delivery to the catalyst layer, continuous 2 M KOH circulation and three-electrode control enabled investigation of catalyst-facet effects, current-density response, product selectivity and short-term stability. The study demonstrates the role of this cell architecture in rapid laboratory-scale CO₂RR validation.
Demonstrated EC-GDE2 Capabilities
- Supports direct reactant-gas delivery to sheet-type GDEs under continuous electrolyte-flow conditions.
- Enables controlled three-electrode evaluation of catalyst activity, product selectivity and current-density response.
- Suitable for rapid feasibility testing and short-term stability studies in CO₂ electroreduction.
Additional Published Applications
- Lin, Y. et al. Nat. Commun. 2023, 14, 3575.
