CNB-2-CS16
LFP Cathode Sheet (LF0610) Single-sided, 5 pieces/pack
Product Name & Description
LFP Cathode Sheet (LFP0610) is based on Carbon Coated Aluminum Foil (both sides) coated by Lithium iron phosphate (LF0610) on a single side and can be used as the cathode of Li-Ion battery.
Product Remark
Front Side: Active Material Coating
The front surface is seen as a deep black color, which is uniform and dense across the sheet.
The adhesion of the LFP coating is strong, ensuring the material remains securely bonded to the aluminum substrate and does not peel off easily.
Back Side: Aluminum Substrate
The back surface appears grey and has a lighter coloration compared to the front.
The coating on this side is slightly uneven, with some sections exhibiting reflective properties.
The coating layer on the back can be easily peeled off and removable with water.

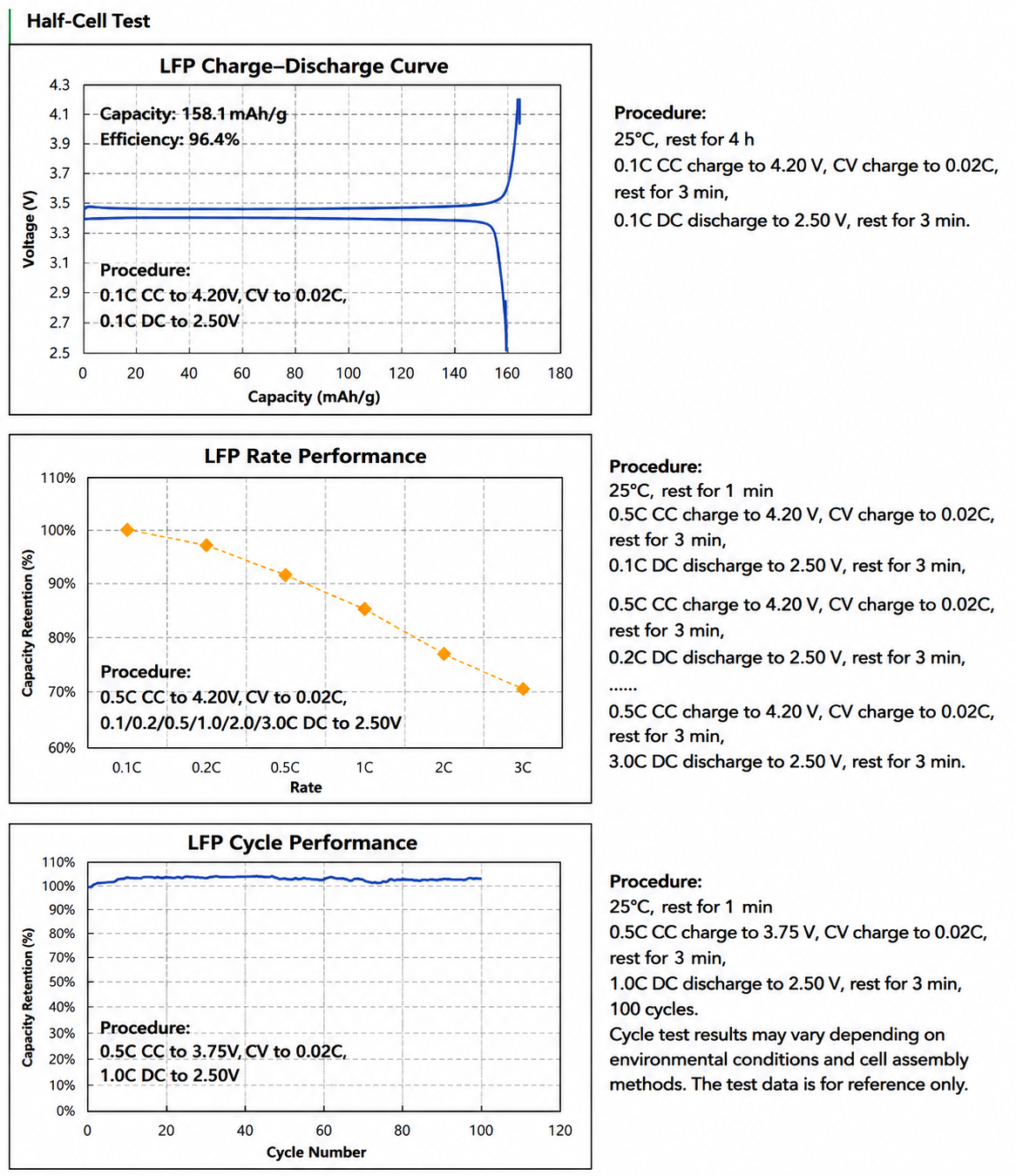

Initial Charge and Discharge Test Conditions:
- Temperature: 25°C
- Charge: First, charge at a constant current of 0.1C to 4.2V, then charge at a constant voltage until the current drops below 0.02C.
- Discharge: Discharge at a constant current of 0.1C to 2.5V.
Rate Performance Test Conditions:
-
Temperature: 25°C
- Charge: First, charge at a constant current of 0.5C to 4.2V, then charge at a constant voltage until the current drops below 0.02C.
- Discharge: Discharge at constant current rates of 0.1C, 0.2C, 0.5C, 1C, 2C, and 3C to 2.5V.
Cycle Test Conditions:
- Temperature: 25°C
- Charge: First, charge at a constant current of 0.5C to 4.2V, then charge at a constant voltage until the current drops below 0.02C.
- Discharge: Discharge at a constant current of 1C to 2.5V.
Specification
| Material |
Lithium iron phosphate |
|
Sheet Size (cm) |
10*10 |
|
Current Collector Thickness (μm) |
14 |
|
Current Collector Areal Density (mg/cm2) |
3.5 |
|
Coating Areal Density (mg/cm2) |
12.3 |
|
Active Material Specific Capacity (mAh:g) |
150mAh/g (2.5-4.2V) |
|
Active Material Ratio (%) |
91.5 |
|
Recommended Compaction Density (g/cc) |
1.5~2.0 |
|
Areal Capacity (mAh/cm2) |
1.69 |
|
Test Conditions |
0.1/0.1C, 2.5-4.2V |
|
Shelf Life |
1 year (vacuum sealed storage), |
|
Instructions For Use |
1.The electrode has been calendered and compacted to a density of 1.8g/cc |
Note: Since the electrodes are single-side-coated, calendering may cause curling issues.
